Apply it right. Cool it better.
Use this page to jump straight to the correct application guide for thermal paste, liquid metal, thermal sheets and pads. Clean surfaces, correct sizing and even mounting pressure make the biggest difference.
Thermal Paste
Safe, simple and best for most CPU, GPU, laptop and regular cooling jobs.
Liquid Metal
Advanced application for experienced users working with compatible surfaces.
Pads & Sheets
Clean, mess-free fitting with PhaseSheet, KryoSheet and thermal pad guidance.
How to Apply Thermal Paste
Thermal paste is the best all-round option for most users. It fills microscopic gaps between the chip and cooler, helping heat move efficiently into the heatsink.
Kryonaut
Duronaut
Application instructions
These steps apply to both Kryonaut and Duronaut.
Clean the contact surfaces
Remove the cooler and clean the CPU, GPU or cooler surface using isopropyl alcohol and a lint-free cloth. Both surfaces should be clean, dry and free from old paste.
Apply a controlled amount

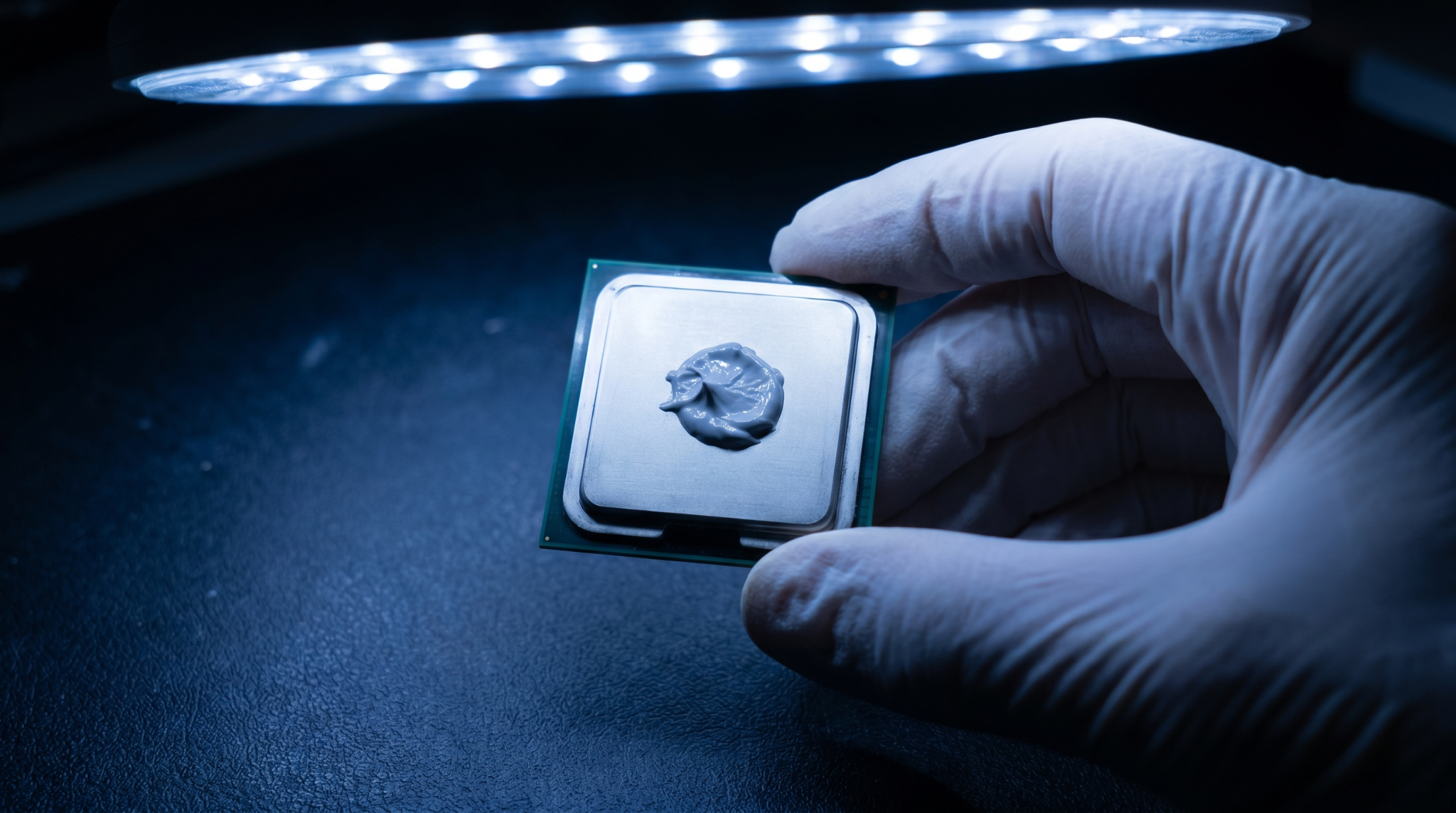

For most desktop CPUs, apply a small pea-sized dot in the centre of the heat spreader. For larger chips, use a thin line or small cross pattern if required.
Mount the cooler evenly
Lower the cooler straight down onto the CPU and tighten the screws gradually in a diagonal cross pattern. Even mounting pressure helps the paste spread correctly.
Check temperatures after installation
Once rebuilt, monitor temperatures under normal load. A good application should give stable temperatures without sudden spikes caused by poor contact.
Do's and don'ts
Do
Don't
When to replace thermal paste
Reapply if you remove the cooler, if temperatures rise noticeably over time, or after several years of continuous use. A fresh application is usually recommended whenever the cooler is removed.
How to Apply Liquid Metal
Liquid metal is for experienced users who want maximum thermal performance. It is electrically conductive and must only be used on compatible surfaces.
Conductonaut
Conductonaut Extreme
Important safety warning
Liquid metal is electrically conductive. Do not allow it to contact surrounding components, SMDs, motherboard traces or aluminium surfaces. Use only on suitable nickel-plated copper, copper or direct-die applications where appropriate.
Application instructions
Use very small amounts. Liquid metal should form a thin, shiny layer — not a thick pool.
Check surface compatibility
Before opening the syringe, confirm that the cooler or contact plate is suitable. Do not use liquid metal on aluminium. Nickel-plated copper is recommended for best long-term stability.
Clean both contact surfaces
Clean the CPU, GPU die, IHS and cooler contact plate thoroughly. Both surfaces must be completely dry and free from old paste, dust, grease or fingerprints.
Apply a pinhead-sized amount
Attach the application needle and apply a very small pinhead-sized amount to the processor surface. You only need enough to create a very thin reflective layer.
Spread into a thin, even film
Use the supplied cotton swab to slowly spread the liquid metal across the full contact area until it forms a smooth, mirror-like film.
Mount the cooler carefully
Lower the cooler straight down and secure it evenly. Tighten screws gradually in a cross pattern. Avoid sliding the cooler once contact is made.
Do's and don'ts
Do
Don't
How to Apply Pads & Sheets
PhaseSheet and KryoSheet are clean alternatives to traditional paste. Correct sizing, clean surfaces and even mounting pressure are essential.
PhaseSheet PTM
KryoSheet
KryoSheet is electrically conductive
If using KryoSheet, the sheet must only contact the chip die or IHS. Never overlap onto surrounding components, capacitors or PCB traces. PhaseSheet is non-conductive and does not have this restriction.
Application instructions
The steps below cover both PhaseSheet and KryoSheet. Differences between the two are called out at each stage.
Choose the right size
Pick a sheet that matches your CPU IHS or GPU die contact area. The sheet should cover the chip surface but should not extend over nearby components.
Clean both contact surfaces
Remove all old thermal paste or pad residue. Clean the chip surface and cooler base using isopropyl alcohol and a lint-free cloth.
Handle the sheet by its edges
Carefully remove any protective film and avoid touching the active surface with bare fingers. Fingerprints and oils can reduce thermal performance.
Place the sheet flat on the chip
Lay the sheet flat and centred on the CPU heat spreader or GPU die. The sheet should sit flat with no creases, folds or gaps.
Mount with firm, even pressure
Lower the cooler straight down without sliding or rotating. Tighten mounting screws gradually in a diagonal cross pattern for even pressure.
Allow PhaseSheet to settle
PhaseSheet reaches peak performance after several thermal cycles above 60°C. Temperatures may improve slightly after the first few days of normal use. KryoSheet performs at its peak from the first boot.
Do's and don'ts
Do
Don't
When to replace your sheet
PhaseSheet is single-use and should be replaced any time you remove the cooler. KryoSheet does not dry out, but it is still best replaced after dismounting if compression or handling has affected the sheet structure.
